Low Pressure Regulator

Low Pressure Regulator

SCG Drawing: R326, R326SP, R326S

Description

Inlet Connection

Outlet Connection

Inlet Pressure

Outlet Pressure

Flow Rate

Excess Flow

GAUGE

SCG Drawing

0.885-14NGO-LH-INT

CGA 510

Diameter

10.5 mm.

140 – 700

kPa

4

kPa

2

kg/hr

(Ref: TIS 805)

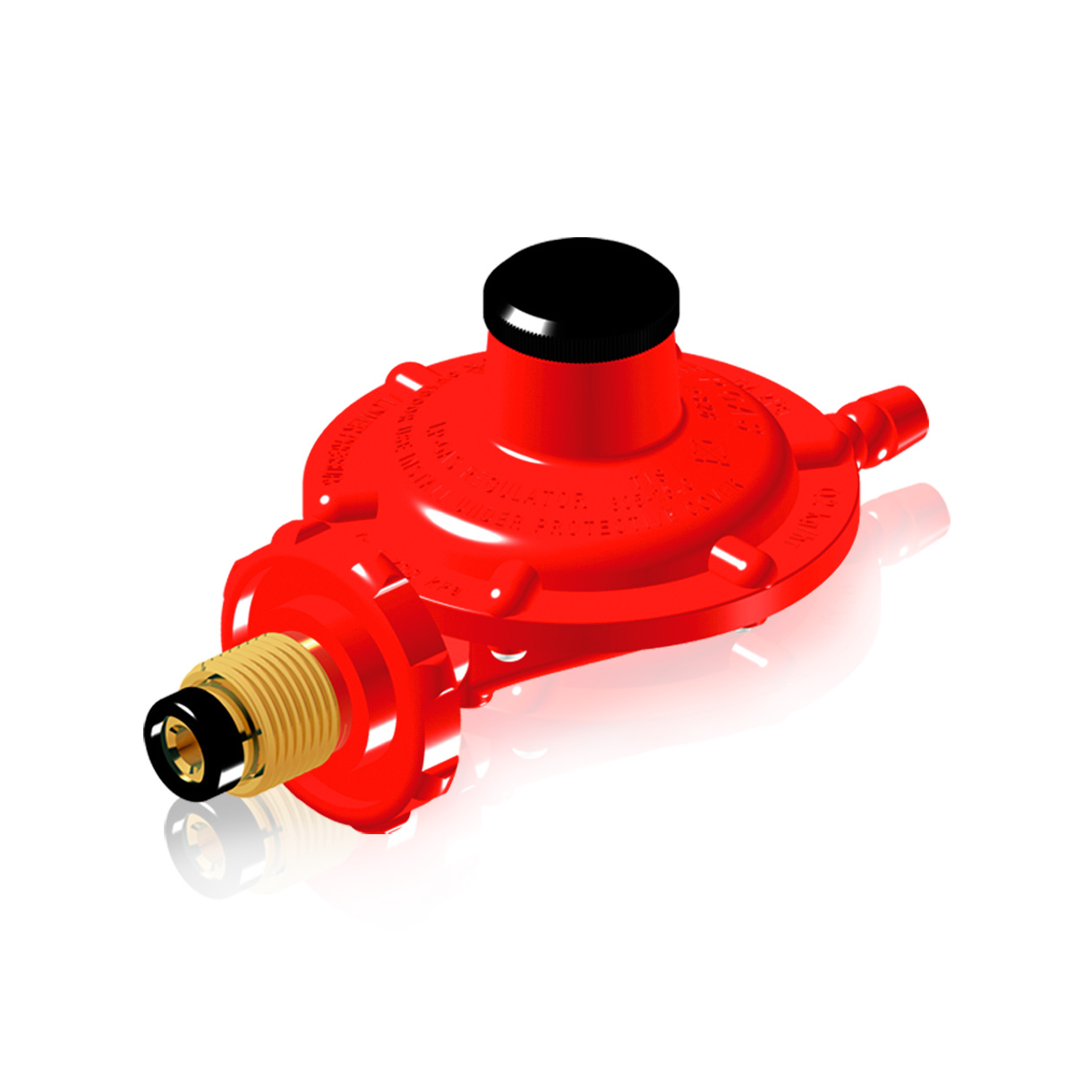

R326

0.885-14NGO-LH-INT

CGA 510

Diameter

10.5 mm.

140 – 700

kPa

4

kPa

2

kg/hr

With

Excess Flow

(Ref: TIS 805)

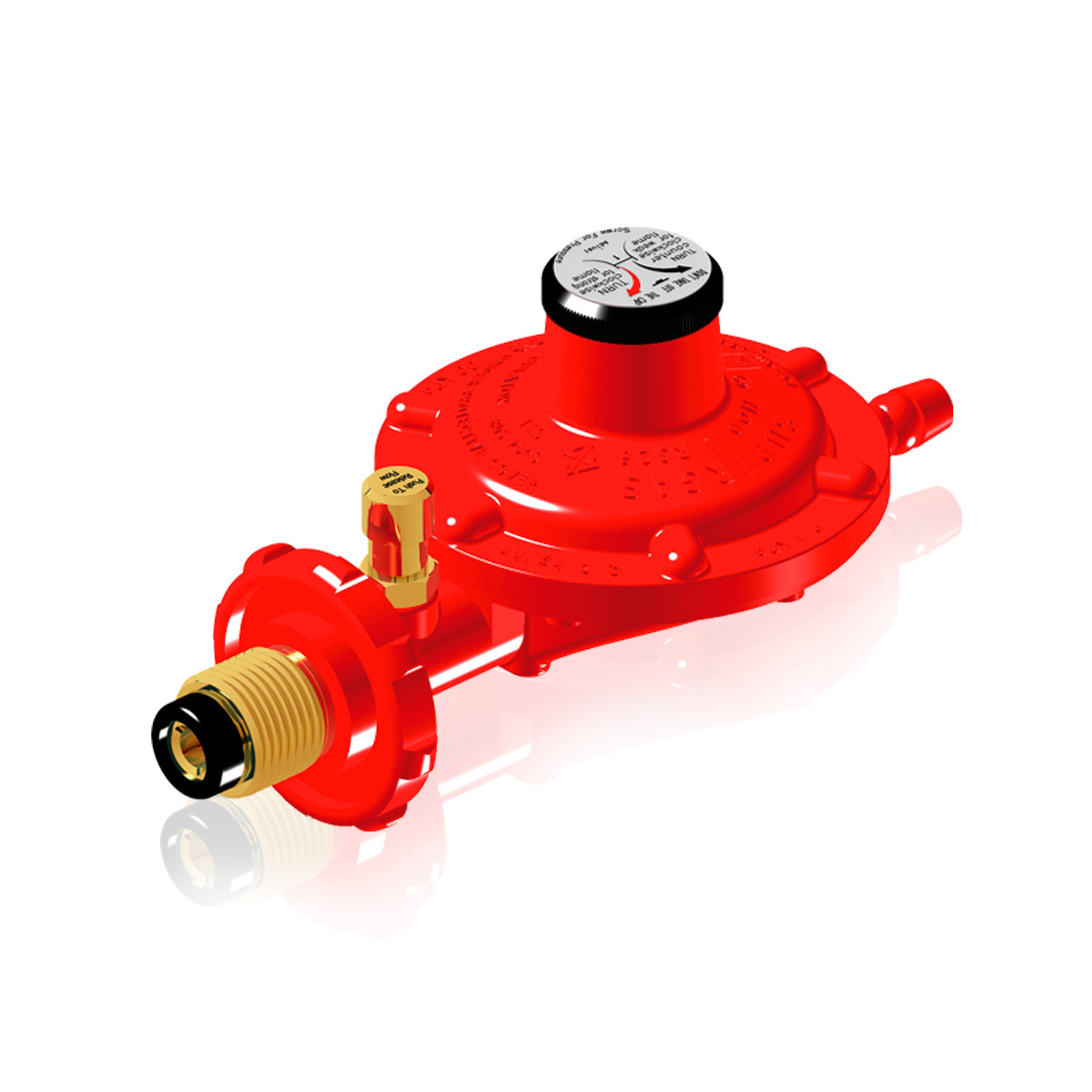

R326S

0.885-14NGO-LH-INT

CGA 510

Diameter

10.5 mm.

140 – 700

kPa

4

kPa

2

kg/hr

With

Excess Flow

With

Pressure Gauge

(Ref: TIS 805)

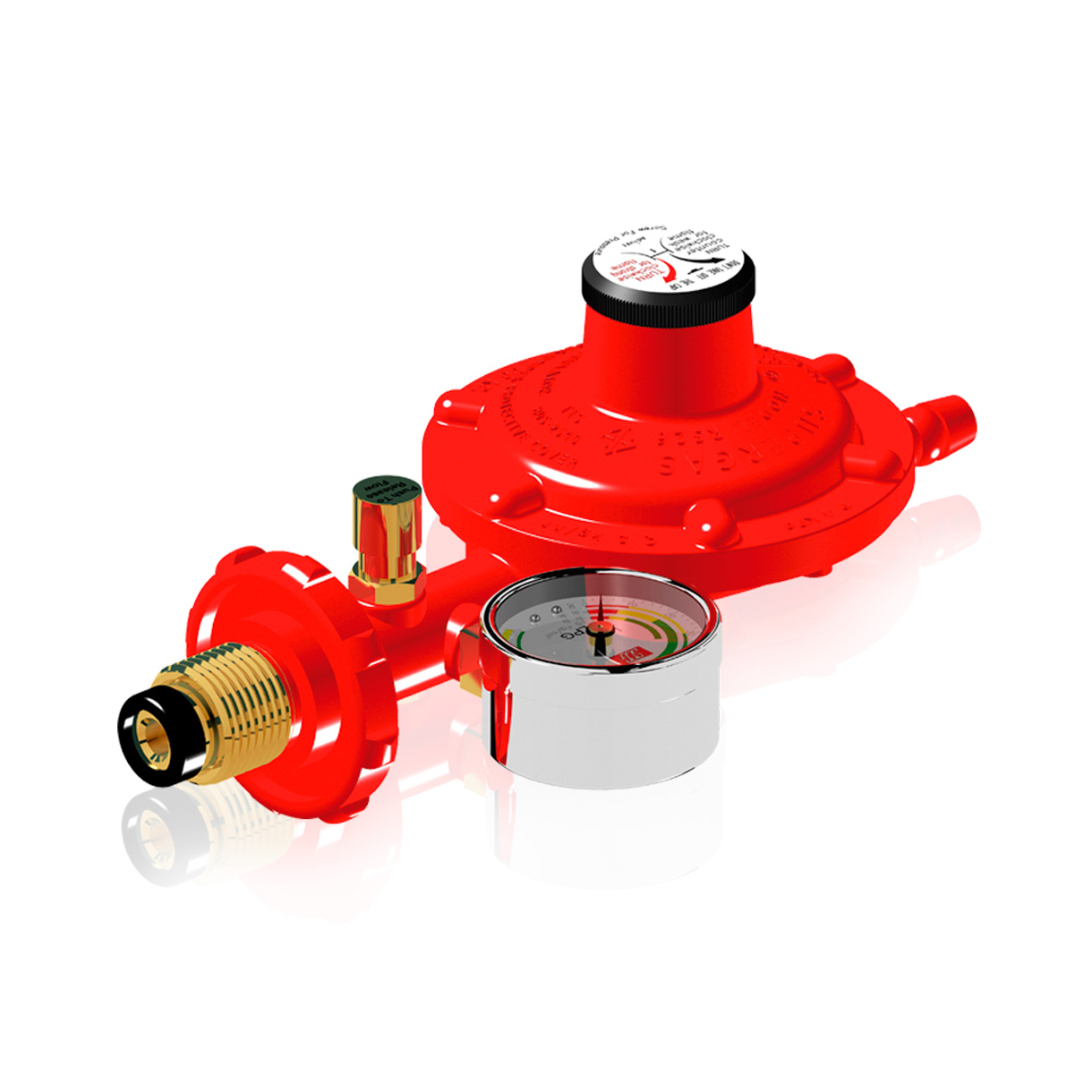

R326SP
