ASIA LPG Cylinder Dual Valve

ASIA LPG Cylinder Dual Valve

SCG Drawing: D-V8-G.3, D-V8-A.5, D-V8-F

Category:

Description

Inlet Connection

Outlet Connection

(Vapor)

Outlet Connection

(Liquid)

PRV
Setting

Flow capacity

SCG Drawing

3/4”

M. NGT

0.885-14NGO-LH-INT

CGA 510

1 1/4″-5ACME-2G-RH

26

bar

12.75

m3/min

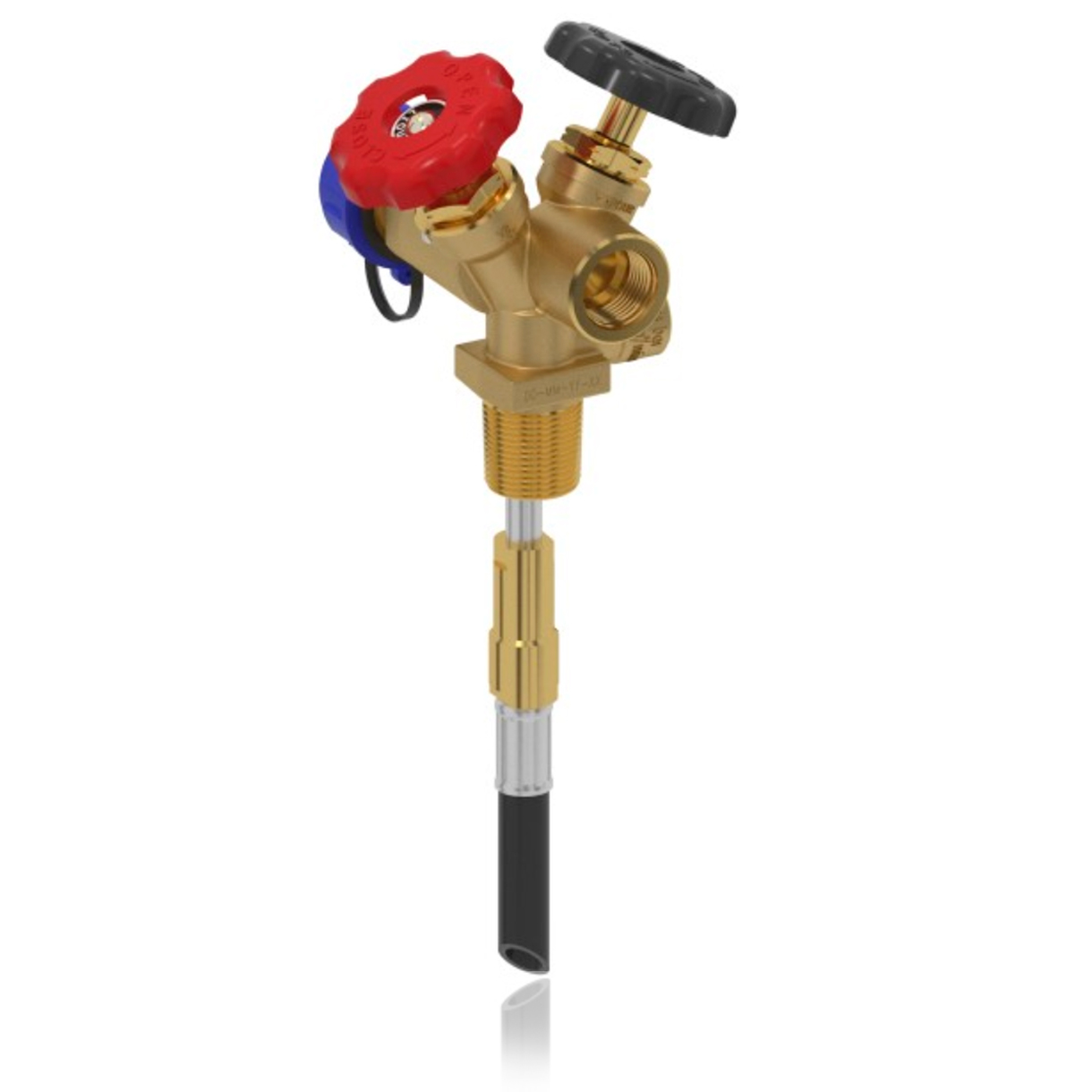

D-V8-G.3

3/4”

M. NGT

0.885-14NGO-LH-INT

CGA 510

0.903-14NGO-LH-EXT

CGA 555

26

bar

12.75

m3/min



D-V8-A.5

3/4”

M. NGT

0.885-14NGO-LH-INT

CGA 510

0.903-14NGO-LH-EXT

CGA 555

26

bar

10

m3/min

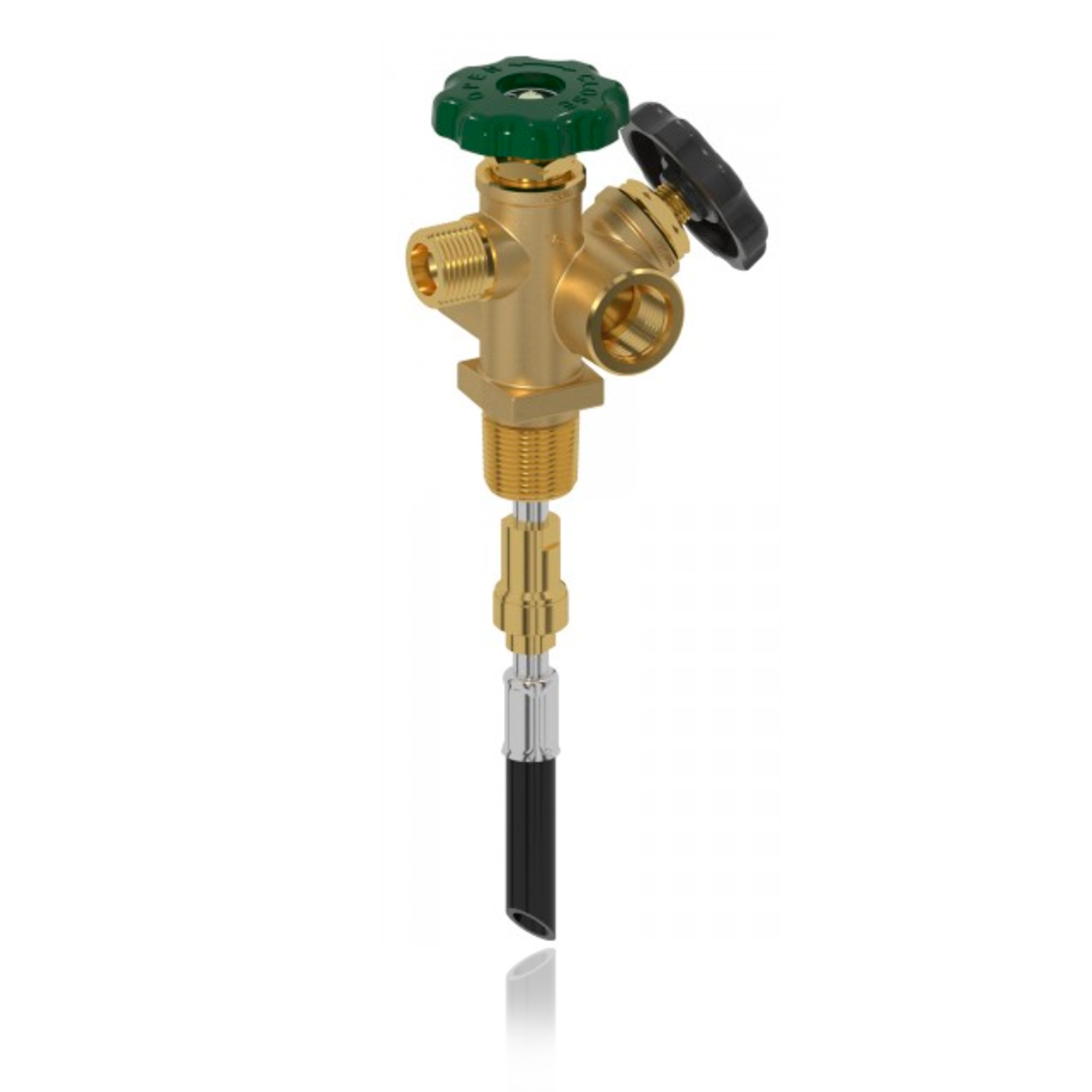

D-V8-F
